Features

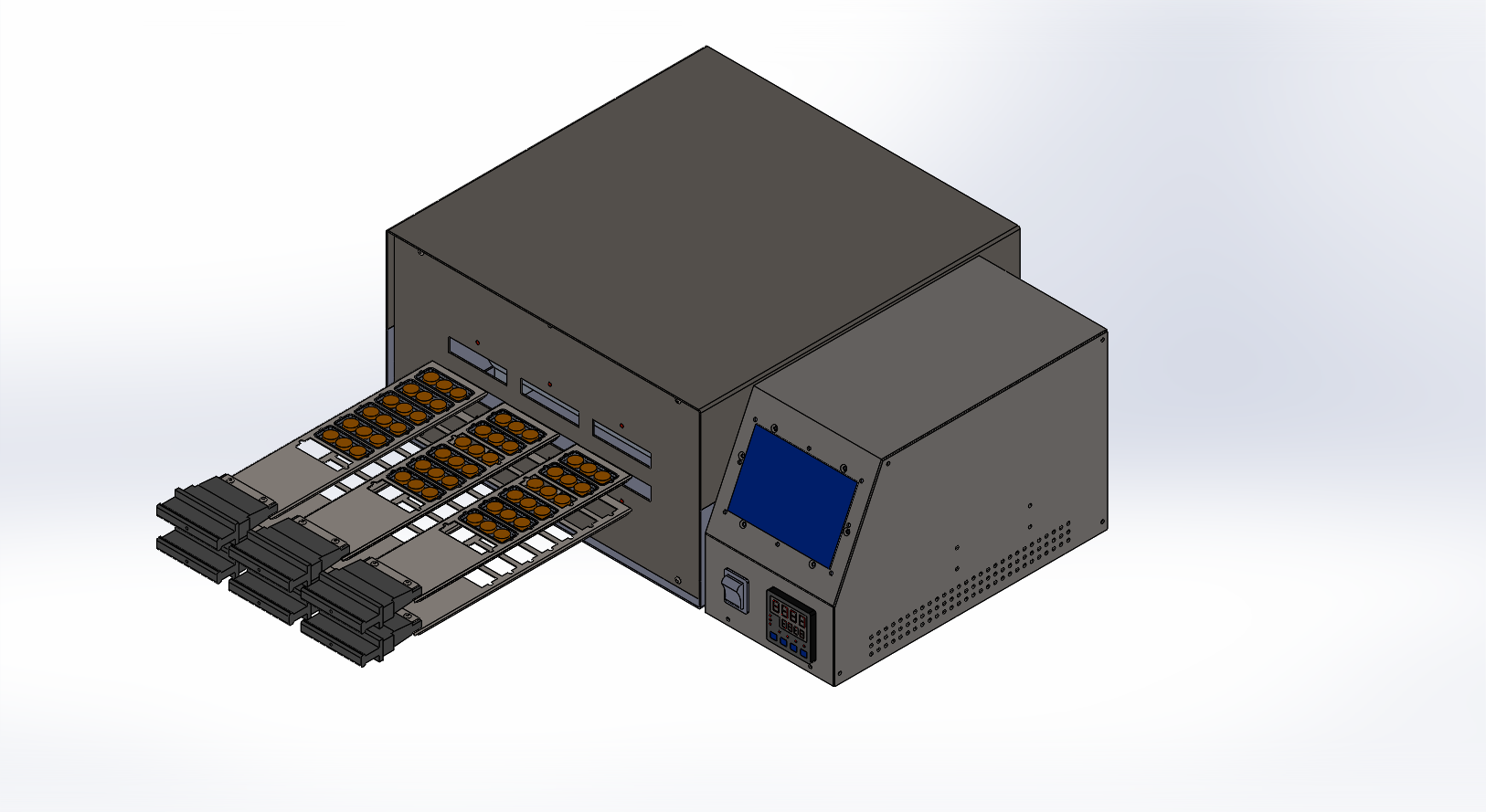

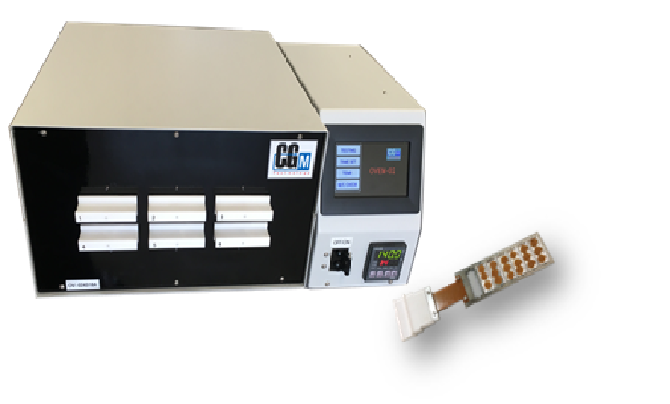

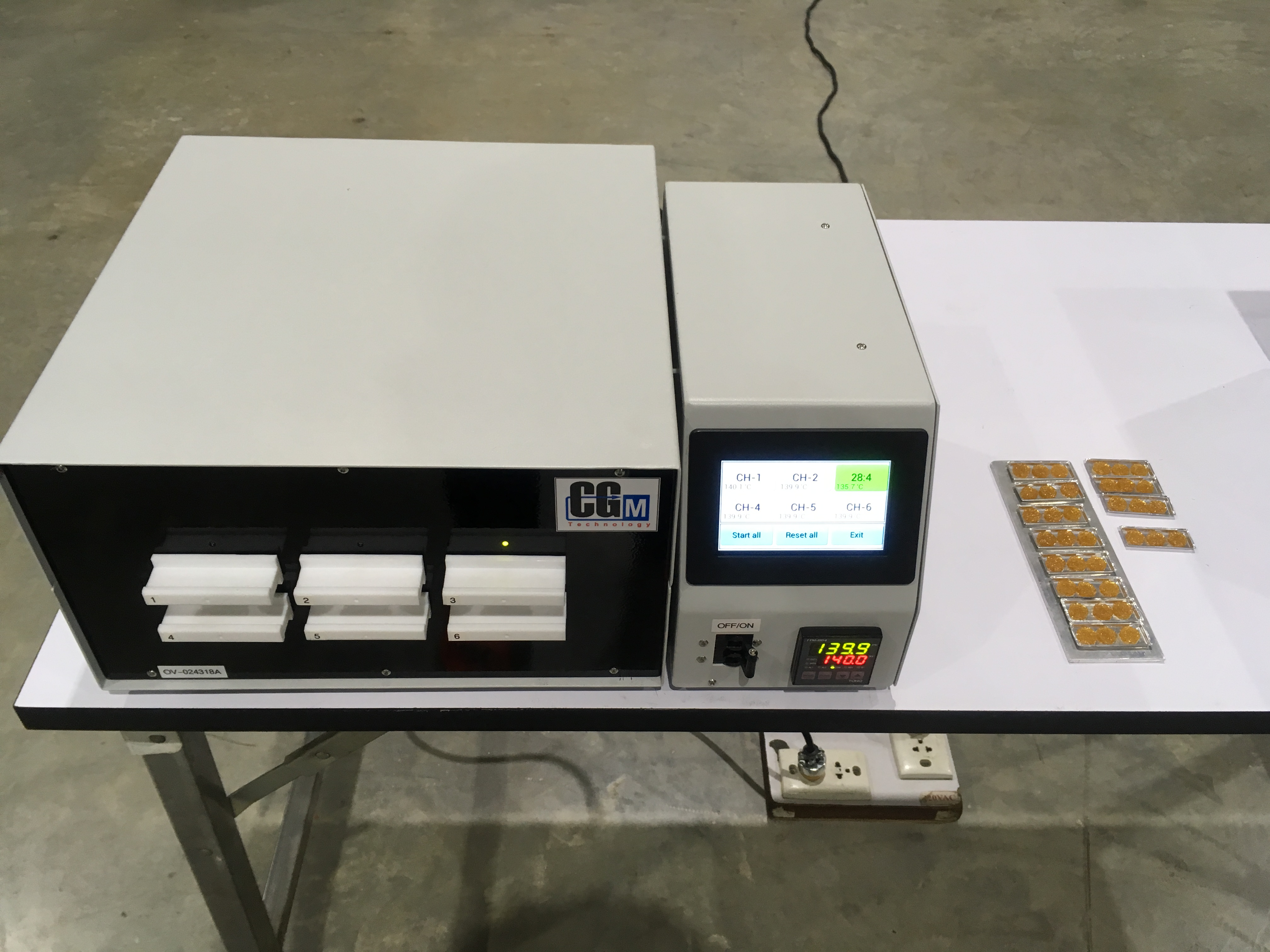

1. 6 heating trays, each tray can accommodate up to 18 pieces of rubber

2. Can view temperature change in real time by touchscree

Specifications

1. Standard ISO 2007, ASTM D3194-99, BS 903-A59:1990
2. Oven Control Type PID control
3. Temperature range + 50°C ~ 180°C
4. Temperature sensor RTD PT100
5. Quantity of slots 6 slots, 6 Sample trays
6. Temperature Monitoring Display show real time temperature of each slot
7. Size of slot W64 mm. x L195 mm. x H12 mm.
8. Total sample 108 pieces (18pieces for 1 tray)
9. Size of inner space ~ 0.9 liter
10. Oven temperature control accuracy ±0.2°C (~100°C~ 145°C)
11. Temperature distribution ±0.2°C (~100°C~ 145°C)
12. Temperature resolution 0.1°C
13. Air Flow 10 Times/hour
14. Overheat protection Thermostat (Overheat protector 180◦C)
15. Electric Power source AC 220 Volts 10 Amp.1 Phase 50/60 Hz
16. Weight 33 kg.
17. Oven size Wide 492 mm. x Deep 350 mm. x High 204 mm.
18. To be used under environmental temperature range of 5 ~ 40°C
19. Display 4.3” Capacitive Touch Screen
